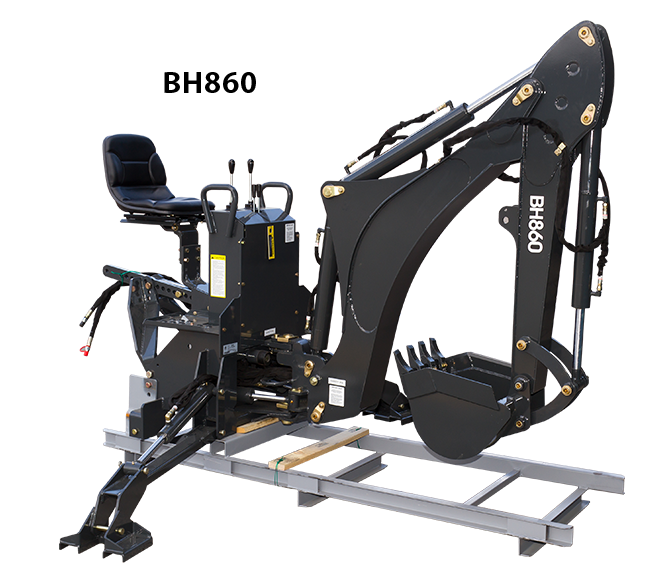

- 3 Point Hitch TypeFeatures
-
Ansung Loader Model |
BH660 |
BH760 |
BH860 |
Recommended Tractor |
15-30P |
25-45HP |
45-65HP |
Digging Depth |
6.6" |
7.6" |
8.9" |
Bucket Cylinder Digging Force |
2,920 lbs |
3,080 lbs |
3,670 lbs |
- Specifications
-
MODEL |
BH 660 |
BH 760 |
BH 860 |
Recommended tractor |
15-30 HP |
25-45 HP
|
45-65 HP |
A. Digging Depth |
6' 6" |
7' 6" |
8' 9" |
B. Reach from center line of Swing Pivot |
8' 6" |
9' 4" |
11' 3" |
C. Loading Height (Bucket @ 60°) |
5' 11" |
6' 7" |
8' 2" |
D. Maximum Leveling Angle |
8° |
8° |
8° |
E. Swing Arc |
180° |
180° |
180° |
F. Transport Height (Maximum) |
5' 6" |
6' 3" |
7' 6" |
G. Transport Overhang |
3' 8" |
4' 1" |
4' 10" |
H. Bucket Rotation |
180° |
180° |
180° |
J. Stabilizer Spread (Down Position) |
7 '2" |
7 '2" |
7 '2" |
L. Stabilizer Spread (Up Position) |
4' 8" |
4' 8" |
4' 8" |
M. Angle of Departure |
15° |
20° |
25° |
N. Undercut |
1' 8" |
3' 0" |
3' 1" |
Bucket cylinder digging force |
2,920 lbs. |
3,080 lbs. |
3,670 lbs. |
Dipper stick cylinder digging force |
1,850 lbs. |
2,160 lbs. |
2,310 lbs. |
Shipping weight (Including Bucket) |
1,100 lbs. |
1,300 lbs. |
1,600 lbs. |
Hydraulic pressure requirements |
2,350 psi |
2,350 psi |
2,350 psi |
|
|
