• M SeriesFeatures
  • Ansung Loader
    Model    		 5070QB(New) 5070QB(Old) 8595QB(New) 8595QB(Old) 5600QB
    Kubota Tractor M6060
    M7060    		 M5040/M5140
    M6040/M7040    		 M8560
    M9960    		 M8540
    M9540    		 M5640SU
    M4800SU
    Kubota Loader LA1154 LA1153 LA1353A LA1353 LA1002
    Maximum Lift HT 125.6" 125.6" 133.8" 133.8" 113.5"
    Lift capacity
    to full height
    @ pivot pin    		 2,640 lbs 2,640 lbs 3,000 lbs 3,000 lbs 2,590 lbs

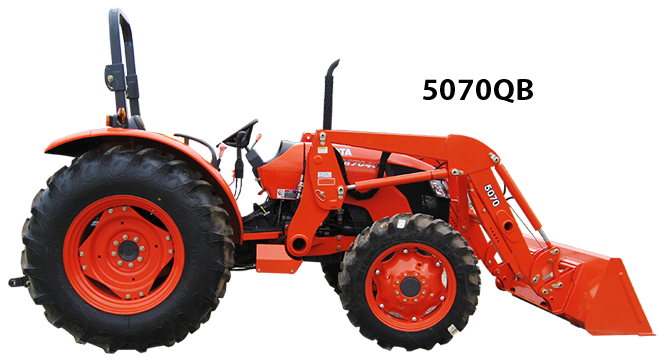

Front End Loader M Series 5070QB Front End Loader M Series 8595쀼
  • Specifications
  •   New Model Old Model New Model Old Model Model
    ANSUNG LOADER MODEL 5070QB 5070QB 8595QB 8595QB 5600QB
    TRACTOR MODEL M6060
    M7060    		 M5040/M5140
    M6040/M7040    		 M8560
    M9960    		 M8540
    M9540    		 M5640SU
    M4800SU
    LOADER MODEL LA1154 LA1153 LA1353A LA1353 LA1002
    A. Maximum Lift Height 125.6" 125.6" 133.8" 133.8" 113.5"
    B. Clearance w/Attachment Level 101.7" 101.7" 121.3" 121.3"
    C. Clearance w/Attachment Dumped 79.8" 79.8" 99.8" 99.8"
    D. Reach @ Maximum Height 18.7" 18.7" 24.6" 24.6"
    E. Maximum Dump Angle 74° 74° 57° 57°
    F. Reach w/Attachment on Ground 74.4" 74.4" 78.7" 78.7"
    G. Attachment Rollback Angle 40° 40° 43° 43°
    H. Digging Depth Below Grade 5.6" 5.6" 7.7" 7.7"
    J. Overall Height in Carry Position 58.2" 58.2" 64.1" 64.1"
    L. Depth of Attachment (to pivot pin) 26.5" 26.5" 26.5" 26.5"
    M. Height of Attachment 26" 26" 26° 26°
    N. Depth of Attachment (to pivot point)
    		 32.2" 32.2" 32.2" 32.2"
    Lift Capacity to Full Height @ Pivot Pin 2,640 lbs 2,640 lbs 3,000 lbs 3,000 lbs 2,590 lbs
    Breakout Force @ Ground Level, Pivot Pin 4,310 lbs 4,310 lbs 3,500 lbs 3,500 lbs
    Relief Valve Setting (Loader Control Valve) 2,873 psi. hyd 2,873 psi. hyd 2,873 psi. hyd 2,873 psi. hyd
    Lift Cylinder 2.36" x 20.2" 2.36" x 20.2" 2.76" x 21.2" 2.76" x 21.2"
    Bucket Cylinder 2.36" x 18.5" 2.36" x 18.5" 2.76" x 18.1" 2.76" x 18.1"
    Bucket Size 72" 72" 84" 84"
